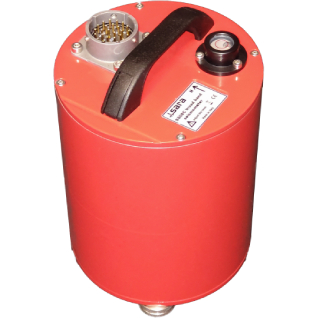

Sara SS08C
Broadband Compact
SS08C is a portable, compact, short / medium / broadband, three-axis seismometer designed for fast and easy installation, operation in a wide temperature range, and secure transport.
Product Brochure
- Sensor type: Compact, tri-axial broadband seismometer
- Operating principle: Force-feedback system with capacitive transducer
- Output mode: Selectable Z, Y, X or U, V, W
- Sensitivity: 1500 V/m/s
- Frequency range: 10 s / 120 s – 100 Hz
- Number of channels: 3 + 3
- Dynamic range: >155 dB at 1 Hz, >135 dB in the 0.1–50 Hz range
- Maximum output: ±20 V differential
- Supply voltage: Isolated 9–36 VDC
- Power consumption: <500 mW at 12 VDC
- Tilt tolerance: ±3°
- Operating temperature: -20°C / +60°C
- Storage temperature: -40°C / +80°C
- Protection class: IP68K
- Digital interface: RS232 or RS485
- Dimensions: Diameter 100 mm, height 125 mm
- Weight: 1.42 kg
