TIDE Tsunami Monitoring

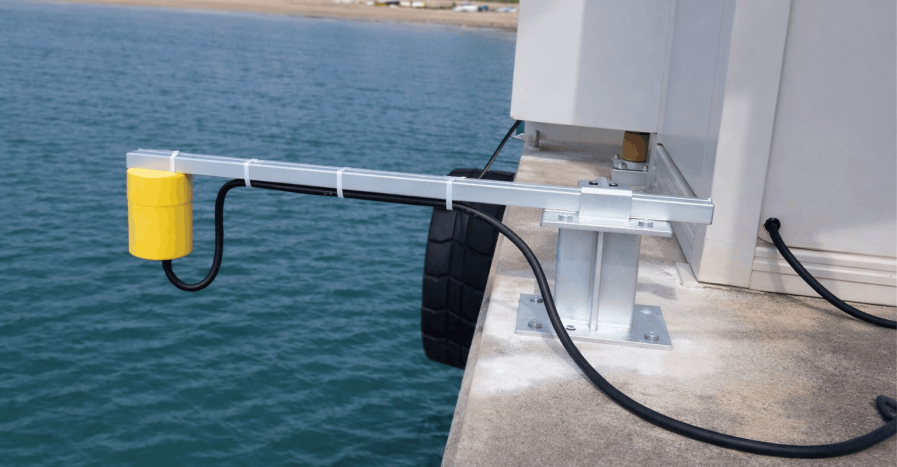

ST100-TIDE is a real-time measurement system that enables precise monitoring of sea level and atmospheric parameters for tsunami monitoring and other applications. It is used in earthquake monitoring networks for tsunami observation purposes.
Water level measurement:
- Measurement range: 0.5–4 m
- Resolution: 1 mm
- Digital output: 24 bit
- GPS-synchronized data
- PoE
- IP67 protection
- Ethernet or optional Wi-Fi data transmission
Atmosphericparameter measurement:
- Parameters: temperature, relative humidity, air pressure, wind direction, wind speed
- Measurement technology: Ultrasonic
- Temperature measurement range: -50 to +60 °C
- Relative humidity: 0–100% RH
All data recorded by the ST100-TIDE are digital and are transmitted to real-time recording centers via the internet.
Digitizer features:
- 24-bit sigma-delta ADC
- Low power consumption: < 1 W
- RS232 & Ethernet output
