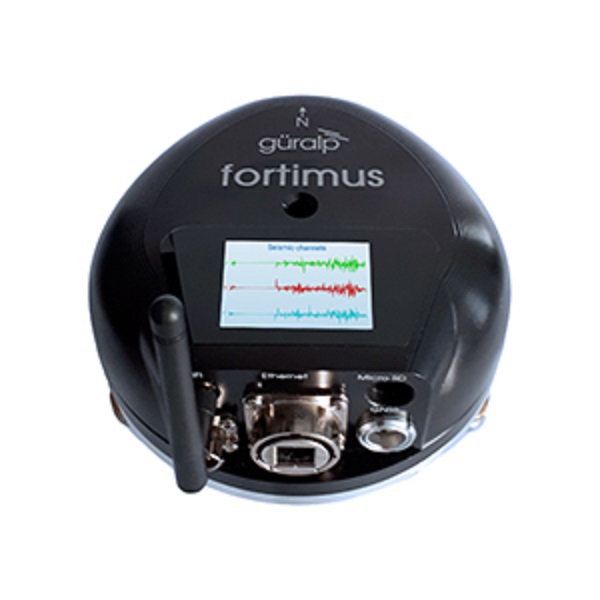

Guralp Fortimus
Fortimus Digital Accelerometer is an advanced digital accelerometer solution that combines sensor performance with all the capabilities of the Minimus digitizer in a single compact housing. Touchscreen LCD, Wi-Fi connectivity, Power over Ethernet (PoE) and Precision Time Protocol (PTP) support offer true plug-and-play usage. With its low-latency operating mode, remote control features and wide data communication options, it provides a high-performance structure for earthquake early warning and professional monitoring applications.
Product Brochure
- Digital accelerometer combining sensor performance and Minimus digitizer capabilities in a single housing
- Plug-and-play usage with touchscreen LCD, Wi-Fi, PoE, and PTP support
- DC – 315 Hz frequency range
- Variable gain options of ±4 g, ±2 g, ±1 g, and ±0.5 g
- Touch-sensitive LCD screen
- Integrated 24-bit Minimus digitizer
- Ultra-low latency operating mode for Earthquake Early Warning applications
- STA/LTA, group voting, and triggering features
- Dual internal 16 GB microSD card storage structure
- One fixed and one hot-swappable microSD card design
- Common Alert Protocol (CAP) support for automated emergency alerts
- Remote control via Güralp Discovery software or a standard web browser
- Ethernet communication and Power over Ethernet (PoE) support
- GüVü Bluetooth app (Android) for installation integrity checks
- GNSS (GPS, GLONASS, or BeiDou) or PTP time synchronization options
- Wi-Fi connectivity support
- Windows and Linux compatibility
- Data recording in MiniSEED format
- Metadata storage in Dataless SEED format
- Data streaming protocols: GCF (Scream!), GDI-link, and SEEDlink
- RESP / dataless SEED file format support for metadata transfer
- Hard-anodized aluminum housing
- IP68 protection class
- Resistant to long-term water immersion at 3 m depth for 72 hours
