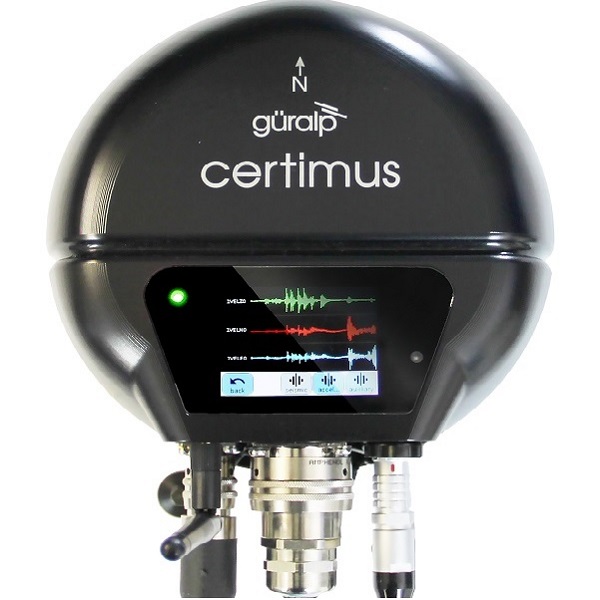

Guralp Certimus
Next-generation digital seismic station.
Certimus is an all-in-one portable, digital, broadband triaxial seismometer with state-of-the-art communication capabilities, suitable for direct burial, surface, and subsurface installations. The device has a wide frequency response between 120 s - 100 Hz and remotely configurable long-period corner frequencies. Unlike other broadband instruments, Certimus can operate at any angle up to ± 90°.
Main applications
- Local, regional, and teleseismic monitoring
- Temporary deployments in harsh environments or remote areas
- Rapid deployment for aftershock monitoring
- Microseismic and induced seismic monitoring in the energy sector, carbon storage, etc.
- Geothermal energy production monitoring
- Permanent or rapid temporary installations for monitoring volcanic activity
Product Brochure
With Power over Ethernet (PoE) and Wi-Fi support, Certimus offers plug-and-play operation. An optional 2.4-inch, ultra-responsive full-color LCD screen allows waveform monitoring, device status (SOH) display, gain control, and network configuration.
Certimus Models
- Certimus Surface for surface installations
- Certimus for direct burial (embedded) installations
Technical Specifications
- Digital, triaxial broadband seismometer
- 120 s – 100 Hz frequency response
- Remotely configurable long-period corner frequency: 1 s, 10 s and 120 s
- Operation at ±90° tilt
- Integrated Minimus 24-bit digitizer
- Ultra-low power mode: < 300 mW
- 128 GB dual redundant microSD
- Multi-touch LCD screen with LED indicators
- Bluetooth connectivity (GuVu App – Android and iOS)
- Waterproof, hard anodized aluminum enclosure (IP68)
- Time synchronization: PTP or GNSS (GPS, GLONASS, BeiDou, Galileo)
- Discovery software package (Windows, Linux and macOS)
