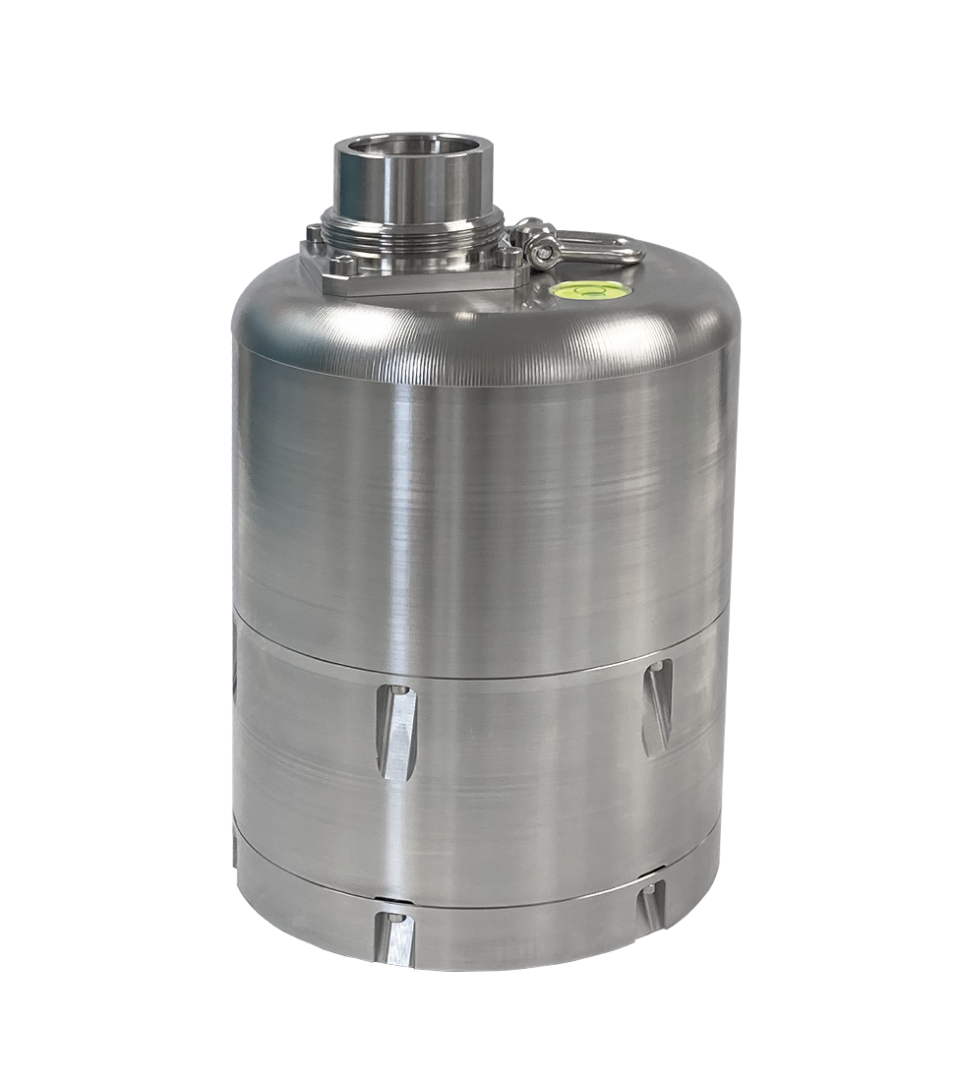

Guralp Hexis
Fortis + Certis: Superior Performance in a Single Device
This innovative solution, which combines the Fortis accelerometer and the Certis mid-motion seismometer in a single housing, provides a total achieved dynamic range exceeding 200 dB. Thanks to its dual-sensor structure, it delivers superior performance in applications requiring both wide measurement capacity and high sensitivity.
The system offers a velocity response between 120 seconds and 100 Hz, while the long-period corner frequency can be remotely selected by the user between 20 and 120 seconds. In addition, it easily adapts to different field conditions with its acceleration response from DC to 100 Hz and remotely selectable gain options.
The device provides flexible integration with existing system infrastructures by offering an analog output option along with serial communication. Its hermetically sealed stainless steel enclosure against environmental effects and 100 bar / 10 MPa waterproof connector ensure reliable operation under harsh environmental conditions.
With its compact, durable, and high-performance design, this system is a powerful solution for advanced seismic monitoring, field applications, and critical measurement needs.
- Technology Force Feedback Digital Sensor
- Topology Three-component Orthogonal (ZNE) for both sensors
- Frequency range – Velocity 120s (0.083Hz) - 100Hz
- Frequency range – Acceleration DC - 100 Hz
- Output sensitivity Certis: 750 V/ms-1
- Fortis: +/4g, +/-2g, +/-1g, +/-0.5g
- Dynamic range Certis:155 dB / Fortis: >160 dB / Total:>200 dB
- Operating tilt +/- 90o
- Cross-axis sensitivity > 65 dB
- Transfer function Measured sensitivity, frequency response and pole-zeros accessible via device and web interface
- Centering Automatic
- Orientation Three-component MEMS accelerometer
- Other sensors Temperature, humidity
- Operating temperature -20 to +70 oC
- Power supply 10-36 V DC
- Power consumption < 2 mW
- Housing Stainless steel
- Environmental sensors Humidity and temperature
- Dimensions 126 mm x 203 mm
- Weight 7.8 kg
- Protection class IP68
